Position:Home/ Home Solar System / 3kw 5kw 10kw Off Grid Solar System
3kw 5kw 10kw Off Grid Solar System

3kw 5kw 10kw Off Grid Solar System

Our Advantages High efficiency PV Modules One-stop solutions service Easy to be installed Smart control Professional design Help you save over 90% electricity bill 10KW off-grid solar system Mono flexible solar panels Power: 445W Weight: 6.5KG Size:1911mm*1137mm*2.7mm Warranty: 5years Quantity: 30 pieces Off-grid solar inverter Max PV input: 4.5kwp Rated power: 5KW MPPT work range: […]

Our Advantages High efficiency PV Modules One-stop solutions service Easy to be installed Smart control Professional design Help you save over 90% electricity bill 10KW off-grid solar system Mono flexible solar panels Power: 445W Weight: 6.5KG Size:1911mm*1137mm*2.7mm Warranty: 5years Quantity: 30 pieces Off-grid solar inverter Max PV input: 4.5kwp Rated power: 5KW MPPT work range:

Product Description

Our Advantages

High efficiency PV Modules
One-stop solutions service
Easy to be installed
Smart control
Professional design
Help you save over 90% electricity bill

10KW off-grid solar system

Mono flexible solar panels
Power: 445W
Weight: 6.5KG
Size:1911mm*1137mm*2.7mm
Warranty: 5years
Quantity: 30 pieces

Off-grid solar inverter
Max PV input: 4.5kwp
Rated power: 5KW
MPPT work range: 120V-430VDC
System voltage: 48V
50-60HZ single phase
Output voltage: 230VAC
Quantity: 2

Battery
Type: Gel battery(Lithium battery can be chosen)
Total power store:9.6KWH
System voltage: 48V
DOD:70%
Quantity: 4
Warranty: 3 years
Controller
96V 100A

MC4 Connector
Rated current: 30A
Rated Voltage: 1000VDC
Warrant: 5 years
Quantity: 20

PV Cable
Type: PV 4mm2
Warrant: 5 years
Quantity: 200 metersMounting Systems
Roof/Ground
Whole set
Warranty: 2 years
Quantity: 1 set
DC combiner box (Switches, breaker,SPD)
2 Inputs 1 outputs

Maximum open circuit

Voltage: 500V

Protection level: IP65

Quantity: 2

Certification
TUV, CE, UL
y
Type: Gel battery(Lithium battery can be chosen)
Total power store:9.6KWH
System voltage: 48V
DOD:70%
Quantity: 4
Warranty: 3 years
Controller
96V 100A

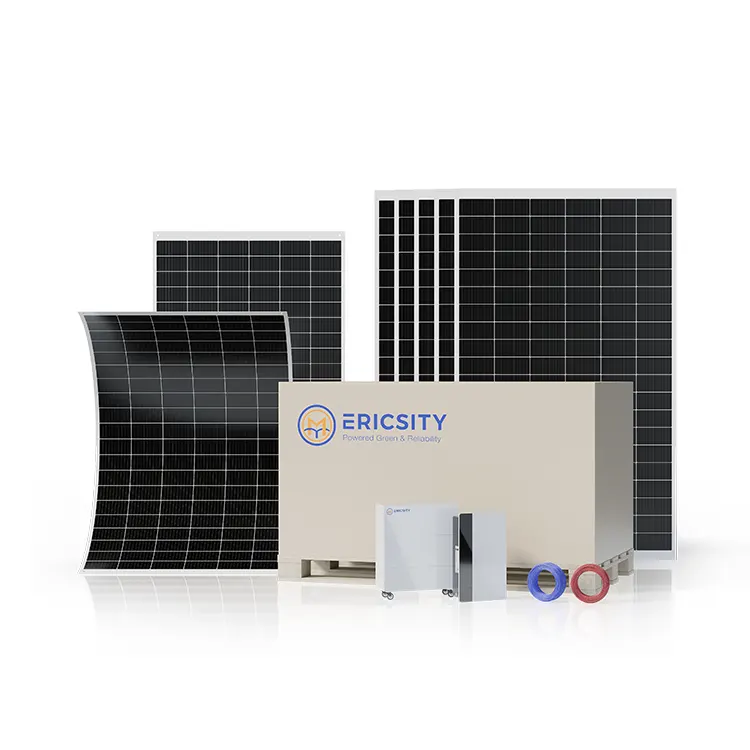

5KW off-grid solar system

Mono flexible solar panels
Power: 445W
Weight: 6.5KG
Size: 1911mm*1137mm*2.7mm
Warranty: 5years
Quantity:16 pieces

Off-grid solar inverter
Max PV input: 6kwp
Rated power: 5.5KW 24V
MPPT work range: 120V-450VDC
System DC voltage: 48VDC
240V 50-60HZ single phase
Warrant: 2 years
Quantity: 1
Battery
Type: Gel battery(Lithium battery can be chosen)
Total power store:9.6KWH
System voltage: 48V
DOD:70%
Quantity: 4
MC4 Connector
Rated current: 30A
Rated Voltage: 1000VDC
Warrant: 5 years
Quantity: 10
PV Cable
Type: PV 4mm2
Warrant: 5 years
Quantity: 100 meters
Mounting Systems
Roof/Ground
Whole set
Warranty: 2 years
Quantity: 1 set
Certification
TUV, CE, UL, ISO, PV CYCLE, CHUBB

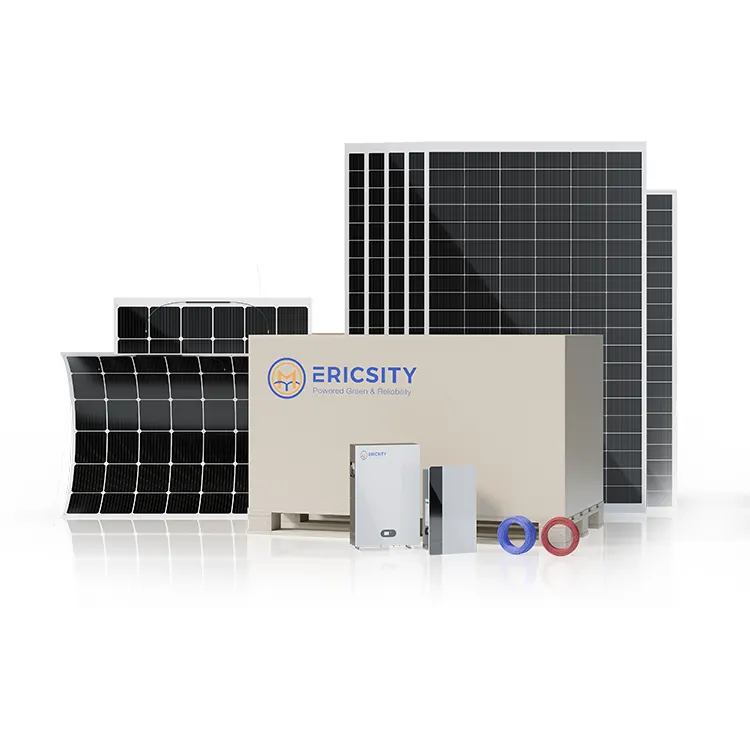

3KW off-grid solar system

Mono flexible solar panels
Power: 445W
Weight:6.5KG
Size: 1911mm*1137mm*2.7mm
Warranty: 5years
Quantity: 10 piecesOff-grid solar inverter
Max PV input: 6kwp
Rated power: 5.5KW 24V
MPPT work range: 120V-450VDC
System DC voltage: 48VDC
240V 50-60HZ single phase
Warrant: 2 years
Quantity: 1
Battery
Type: Gel battery(Lithium battery can be chosen)
Total power store:9.6KWH

System voltage: 48V
DOD:70%
Quantity: 4
MC4 Connector
Rated current: 30A
Rated Voltage: 1000VDC
Warrant: 5 years
Quantity: 10
PV Cable
Type: PV 4mm2
Warrant: 5 years
Quantity: 100 meters
Mounting Systems
Roof/Ground
Whole set
Warranty: 2 years
Quantity: 1 set
Certification
TUV, CE, UL, ISO, PV CYCLE, CHUBB
